Why do you need an electrical distribution cabinet or so-called “parade cabinet”?
In many cases (construction sites, events, concerts, street fairs, exhibitions, festivals, etc.), it is not possible for high-power consumers (ohmic or capacitive) to be powered from the available low-power grid or battery.
In this case, tools, amplifiers, high-power lighting and other electrical consumers can be operated from the mains via a high-power main cable (with large cross-section wires) disconnected from the mains.
Sometimes distribution cabinets are essential because it is not the power consumption of individual consumers that requires a high-power solution, but the number of electrical appliances that have a high total and simultaneous consumption far exceeding the available network capacity, so without a partial and permanent damage or even a complete destruction would be virtually impossible to operate the devices at the same time.
Products

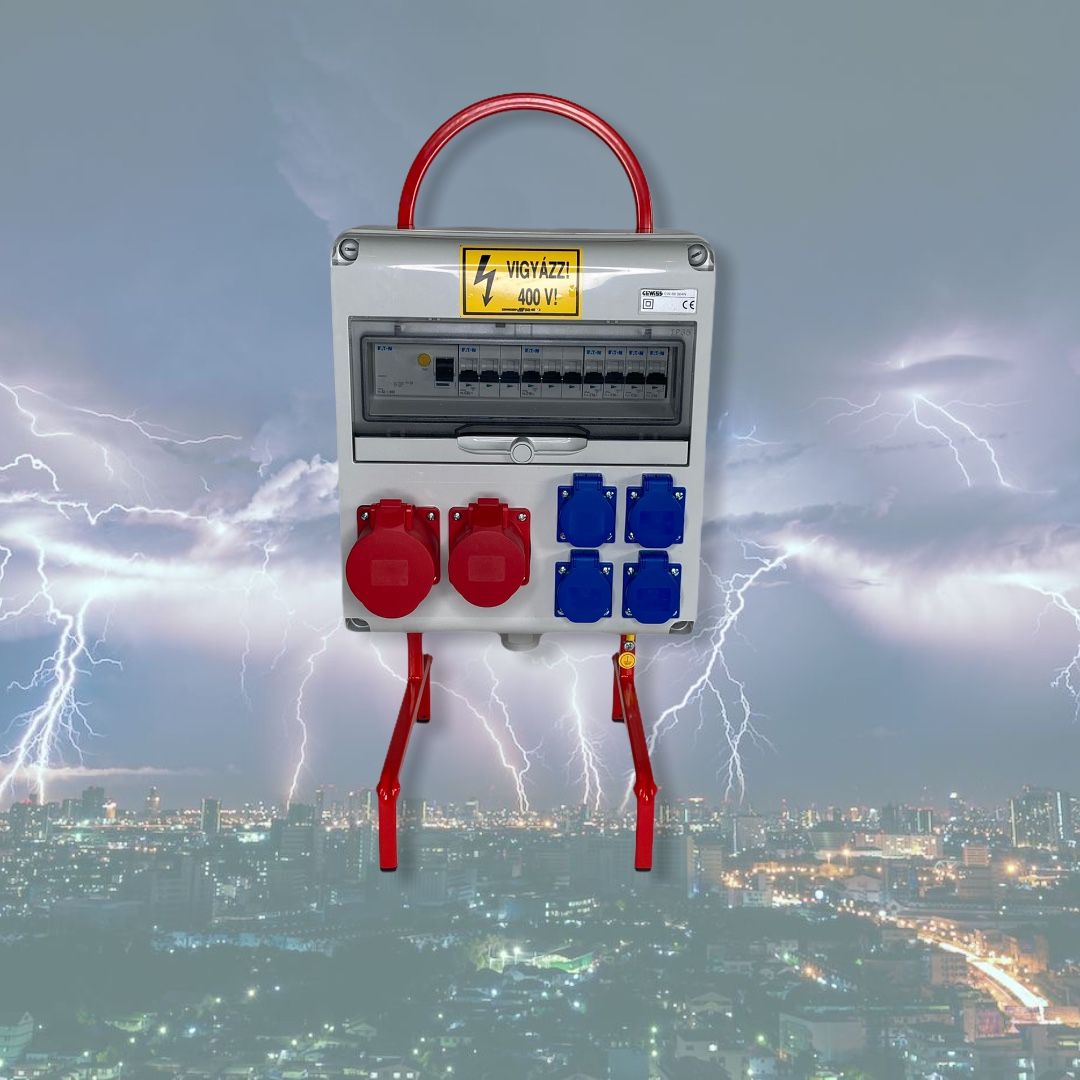

IFSZ 3632
- Name: IFSZ 3632
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: ABS plastic, IP44, universal using, easy to carry
- Size of the cabinet: 360 mm x 320 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: no
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 32A, 1 pc. 3 pole 16A , 4 pcs. 1 pole 16A
- Sockets, connectors: 1 pc 5 pole 32A, 1 pc 5 pole 16A, 4 pcs 3 pole 16A

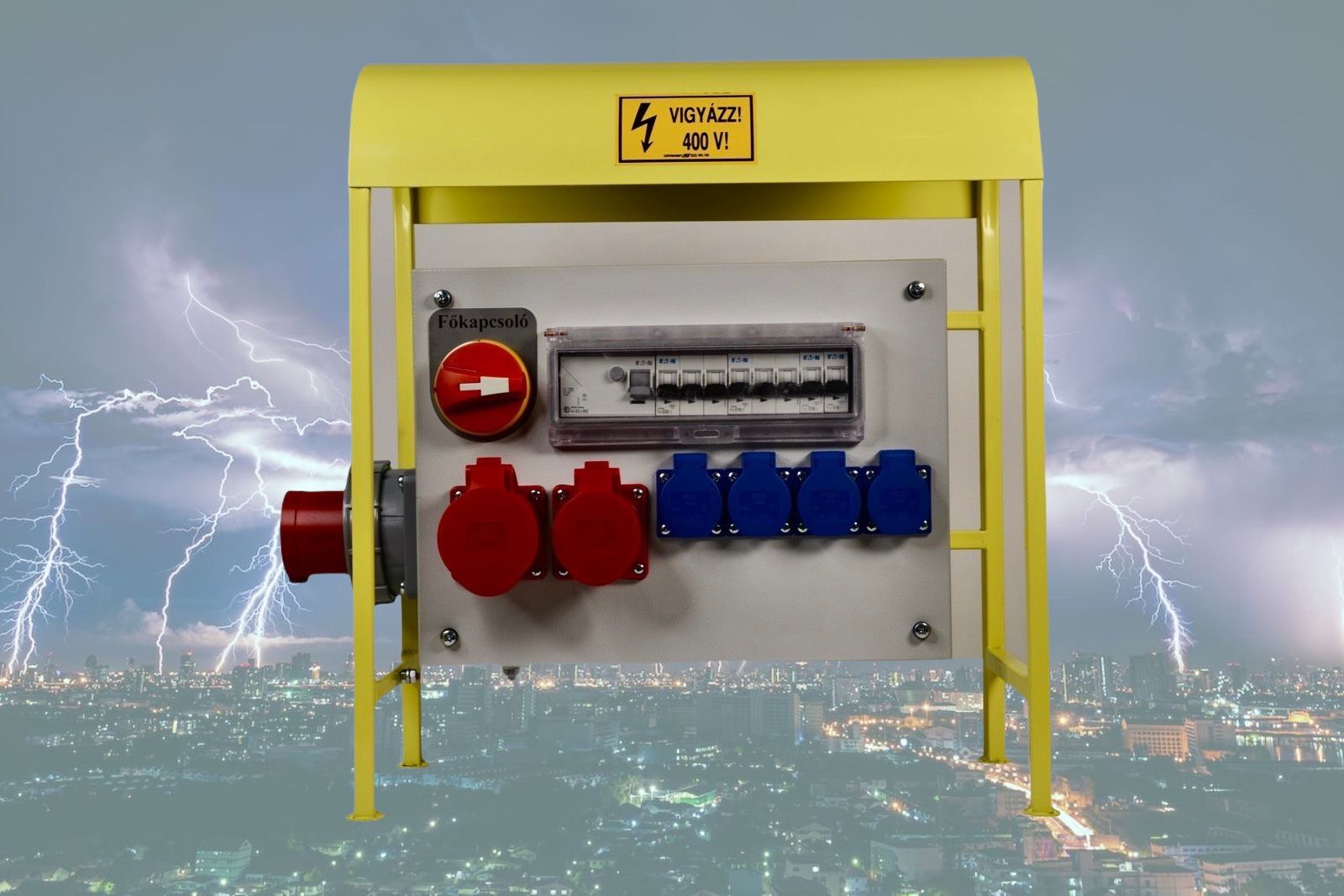

IFSZ 2540 80K
- Name: IFSZ 2540 80K
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 400 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: yes
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 32A, 1 pc. 3 pole 16A , 2 pcs. 1 pole 16A
- Sockets, connectors: 1 pc 5 pole 32A, 1 pc 5 pole 16A, 4 pcs 3 pole 16A, 1 pc 5 pole 63A father

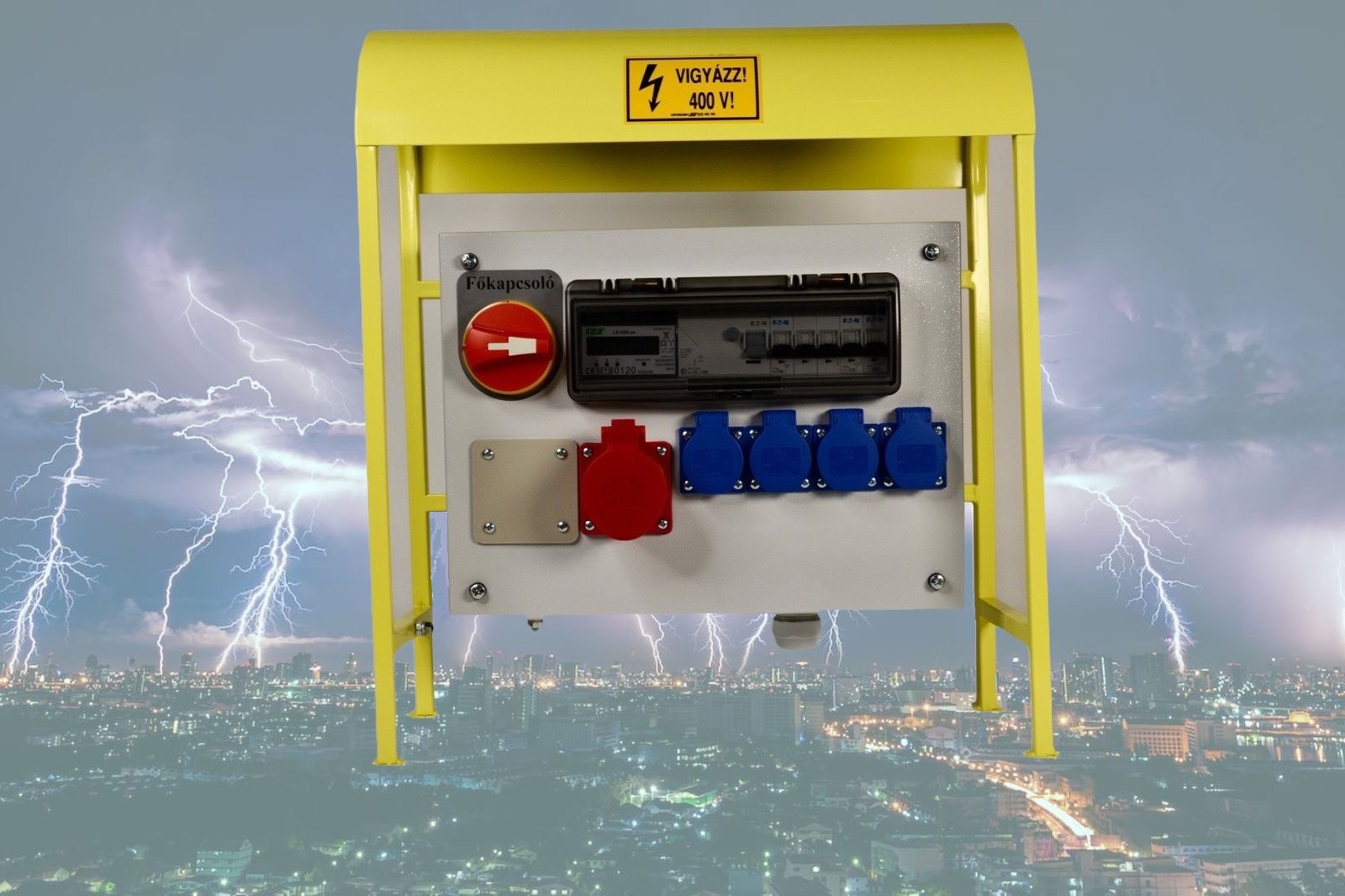

IFSZ 2540 80KMé
- Name: IFSZ 2540 80KMé
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial with currentmeter
- Size of the cabinet: 400 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: yes
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 16A , 2 pcs. 1 pole 16A
- Sockets, connectors: 1 pc 5 pole 16A, 4 pcs 3 pole 16A

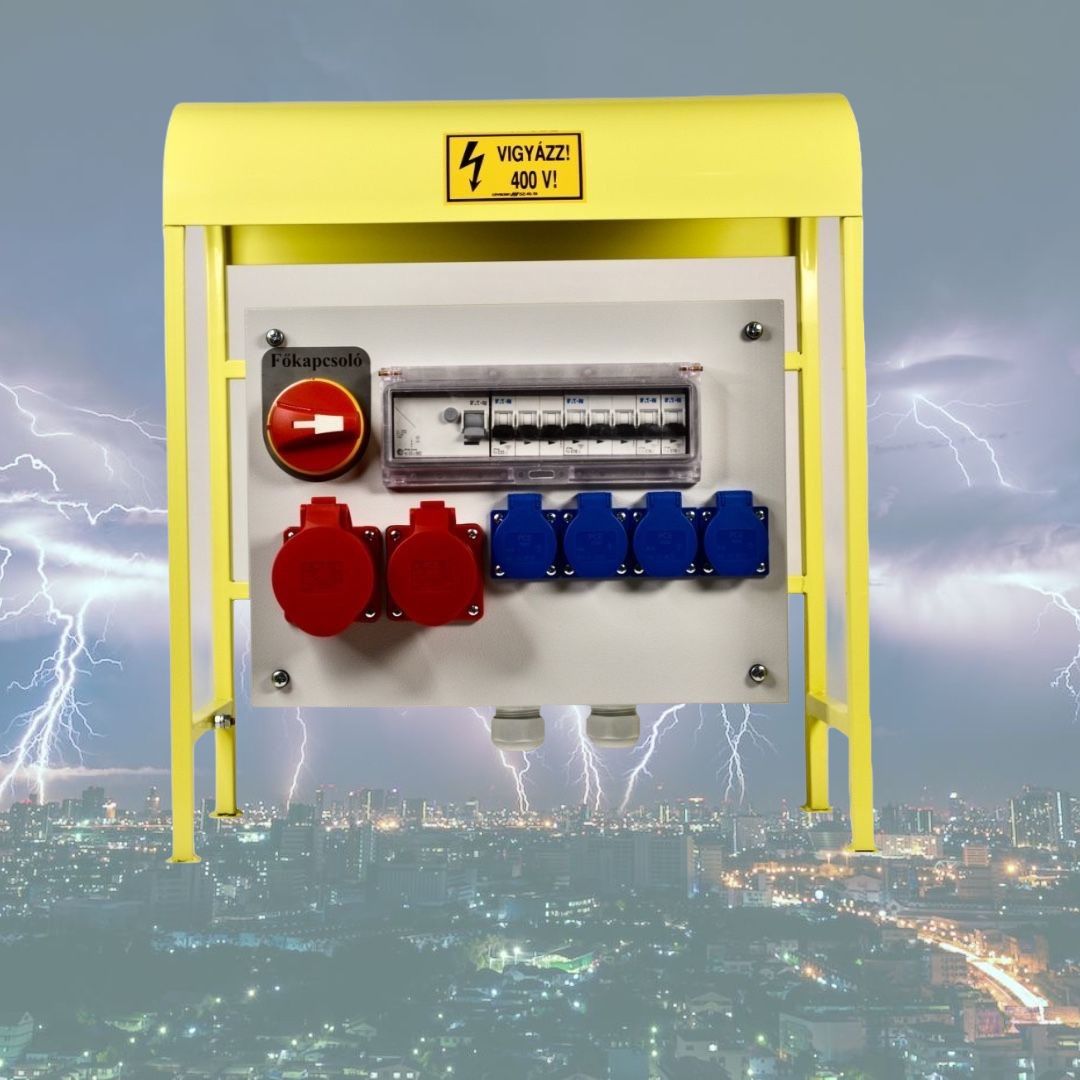

IFSZ 2540 80KSF
- Name: IFSZ 2540 80KSF
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial, strungable
- Size of the cabinet: 400 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: yes
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 32A, 1 pc. 3 pole 16A , 2 pcs. 1 pole 16A
- Sockets, connectors: 1 pc 5 pole 32A, 1 pc 5 pole 16A, 4 pcs 3 pole 16A

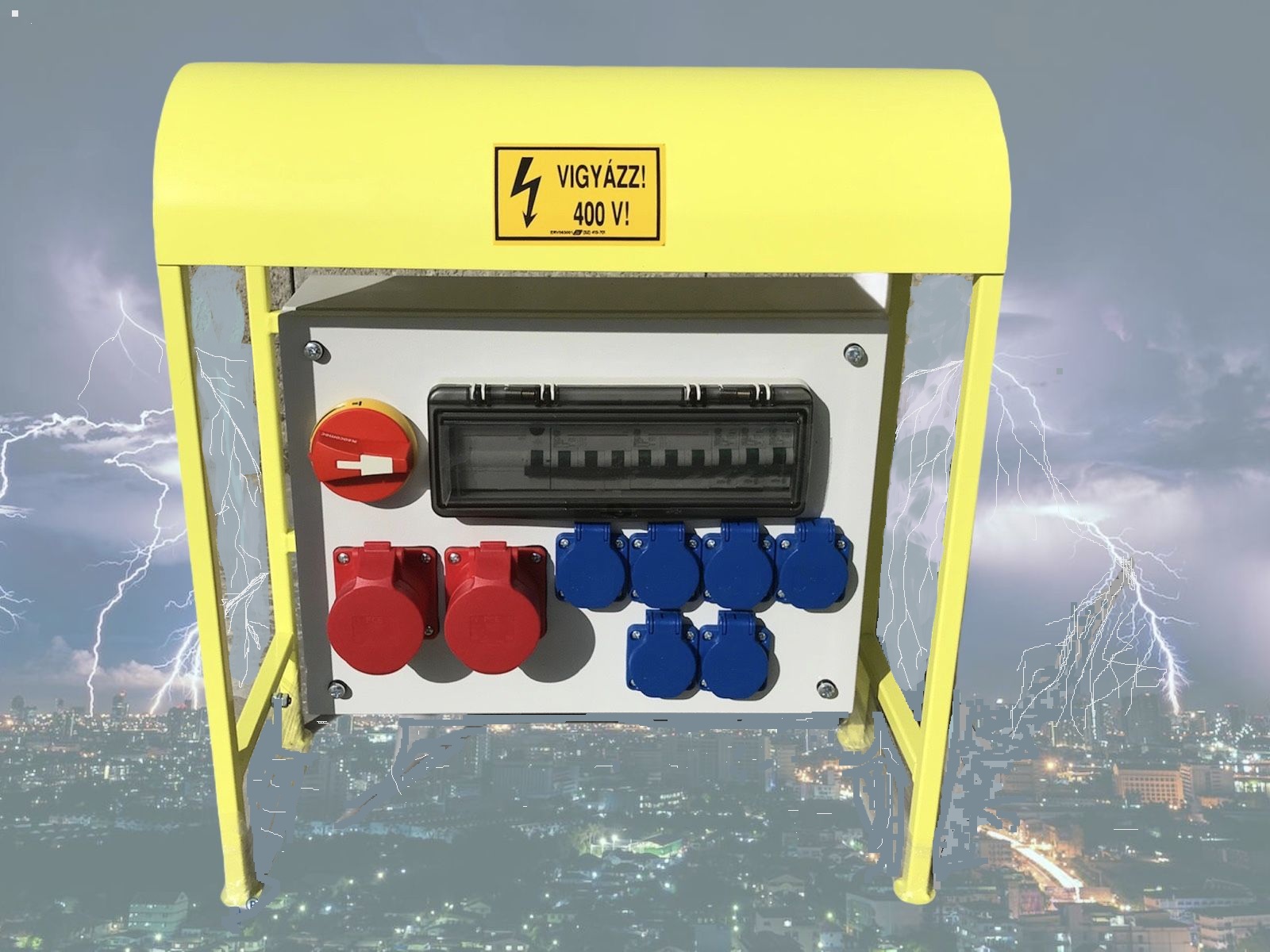

IFSZ 2540 80KSim
- Name: IFSZ 2540 80KSim
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 400 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: yes
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 32A, 1 pc. 3 pole 16A , 3 pcs. 1 pole 16A
- Sockets, connectors: 1 pc 5 pole 32A, 1 pc 5 pole 16A, 6 pcs 3 pole 16A

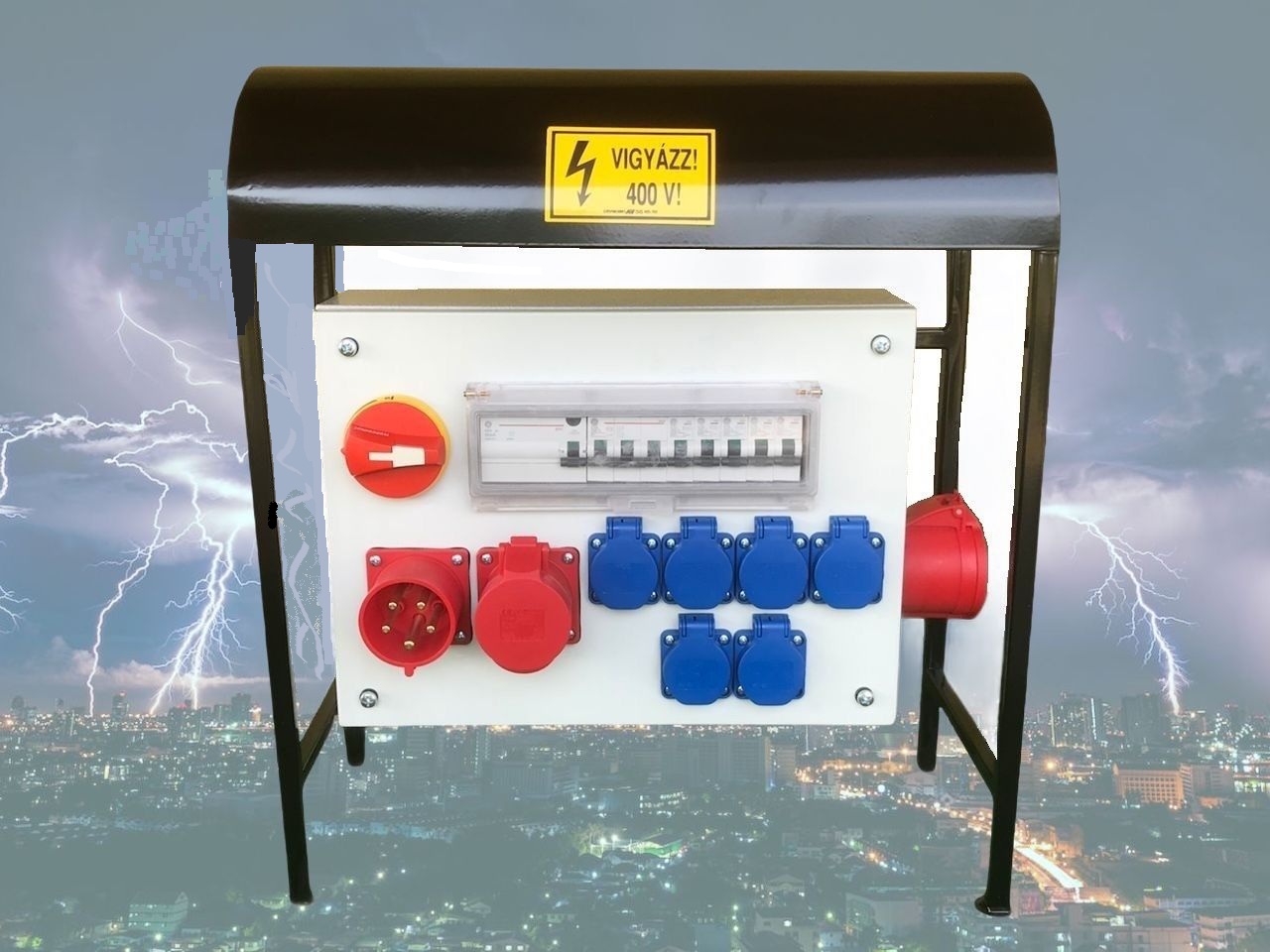

RSZ 2540 80K
- Name: RSZ 2540 80K
- Stand: grounded, black powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 400 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, music instruments
- Capacity: in case of permanent use of ohm consumer max. 40 Amper or 9kW
- Main switch: yes
- Loading: max 40A
- Electric schock protection: 1 pc. 4 pole, 40A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 16A , 5 pcs. 1 pole 16A
- Sockets, connectors: 1 pc 5 pole 32A, 1 pc 5 pole 16A, 6 pcs 3 pole 16A, 1 pc 5 pole 63A father

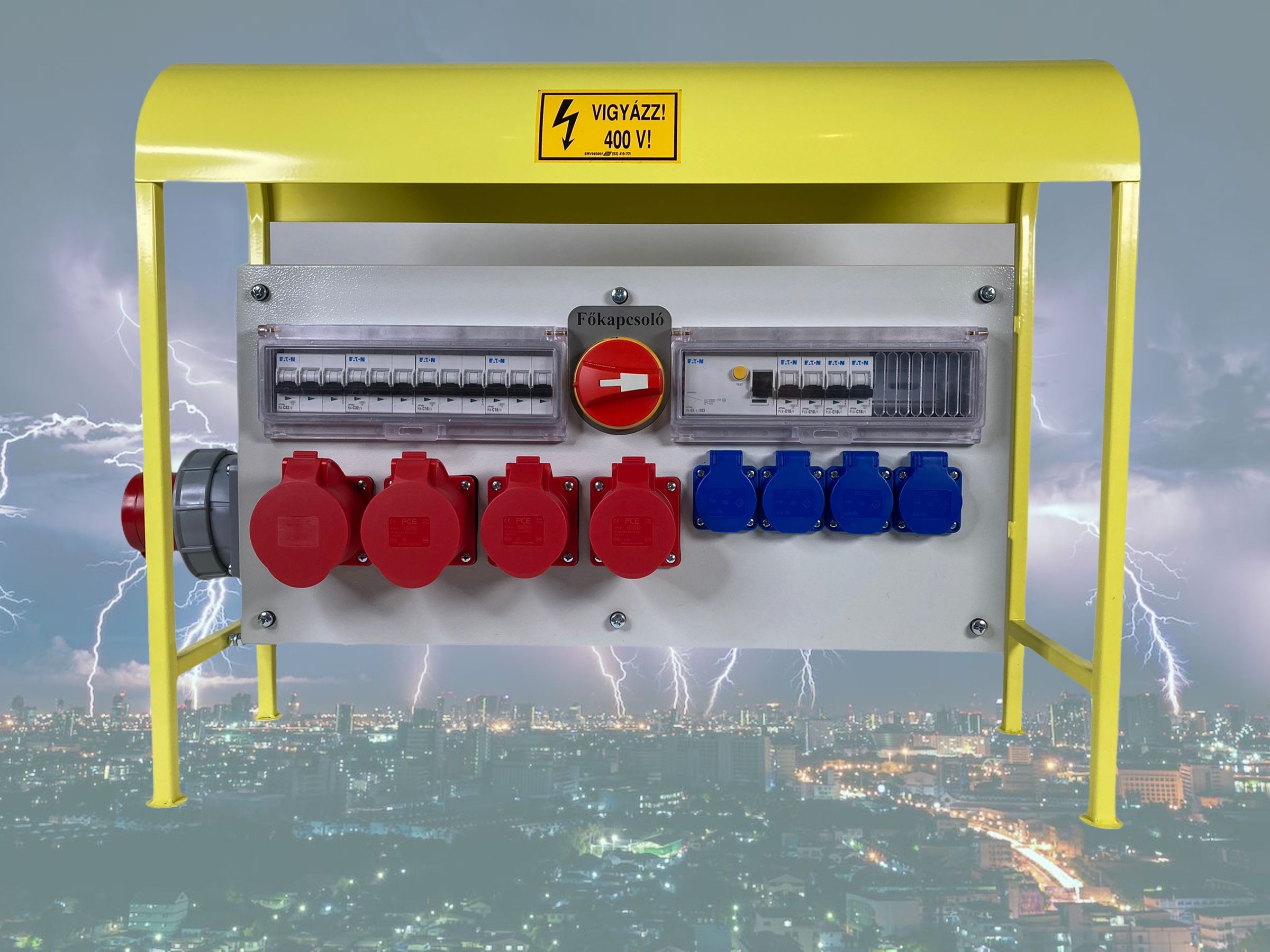

IFSZ 2560 80K
- Name: IFSZ 2560 80K
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 600 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: yes
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 4 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 4 pcs 3 pole 16A, 1 pc 5 pole 63A father

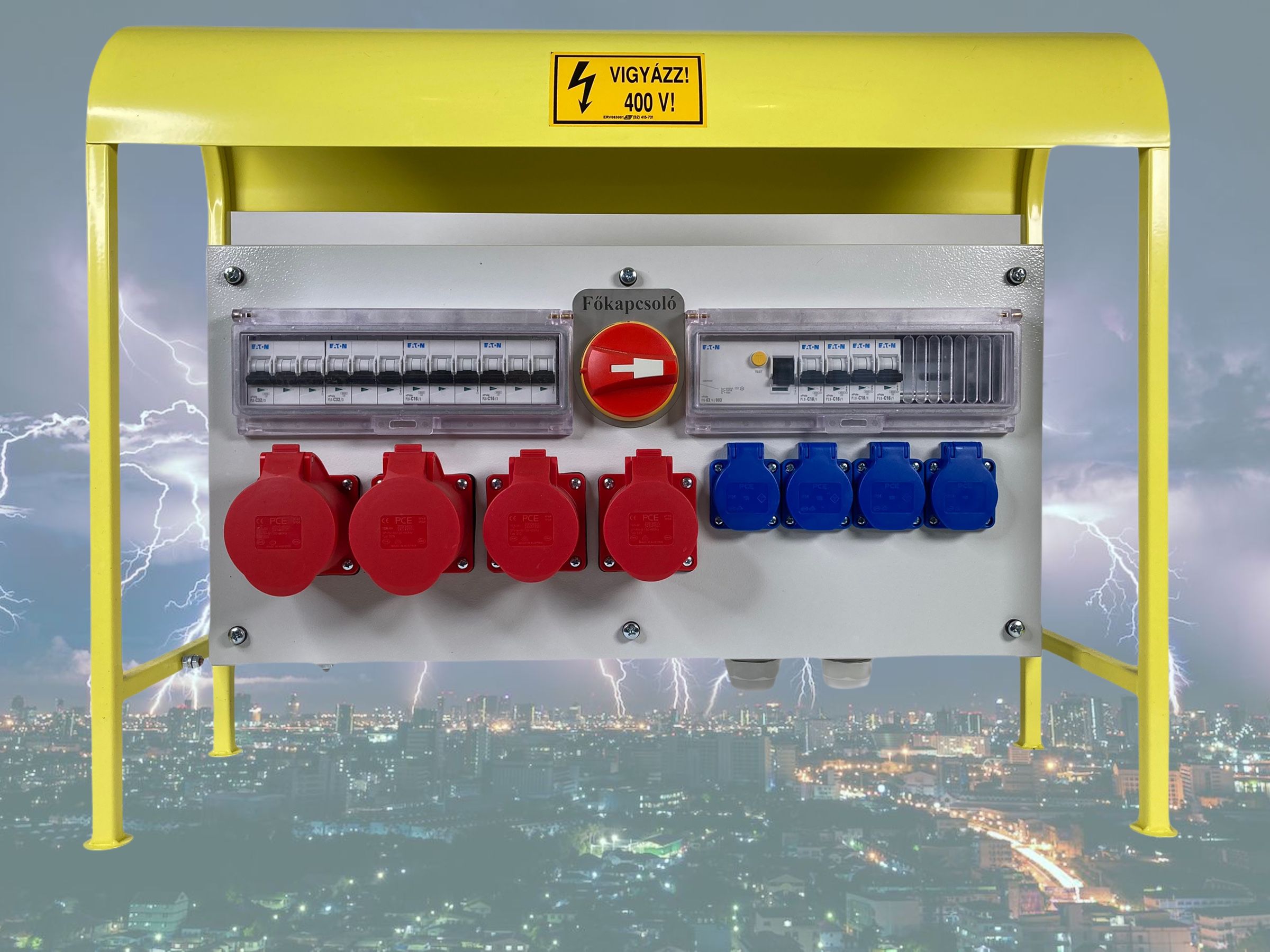

IFSZ 2560 80KSF
- Name: IFSZ 2560 80KSF
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial, strungable
- Size of the cabinet: 600 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 60 Amper or 13kW
- Main switch: yes
- Loading: max 63A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 4 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 4 pcs 3 pole 16A

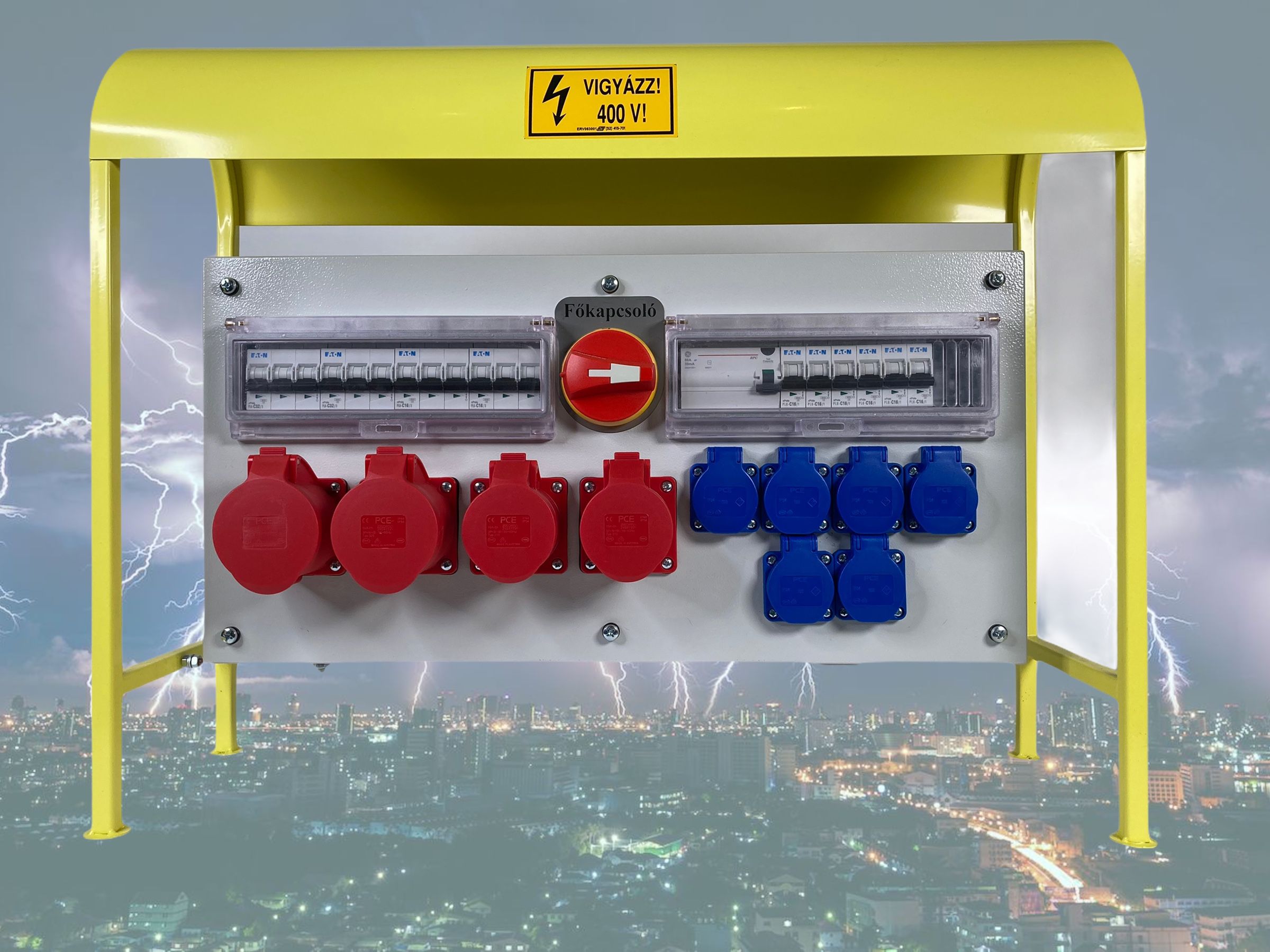

IFSZ 2560 80KSim
- Name: IFSZ 2560 80KSim
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 600 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 80 Amper or 18kW
- Main switch: yes
- Loading: max 80A
- Electric schock protection: 1 pc. 4 pole, 80A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 6 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 6 pcs 3 pole 16A

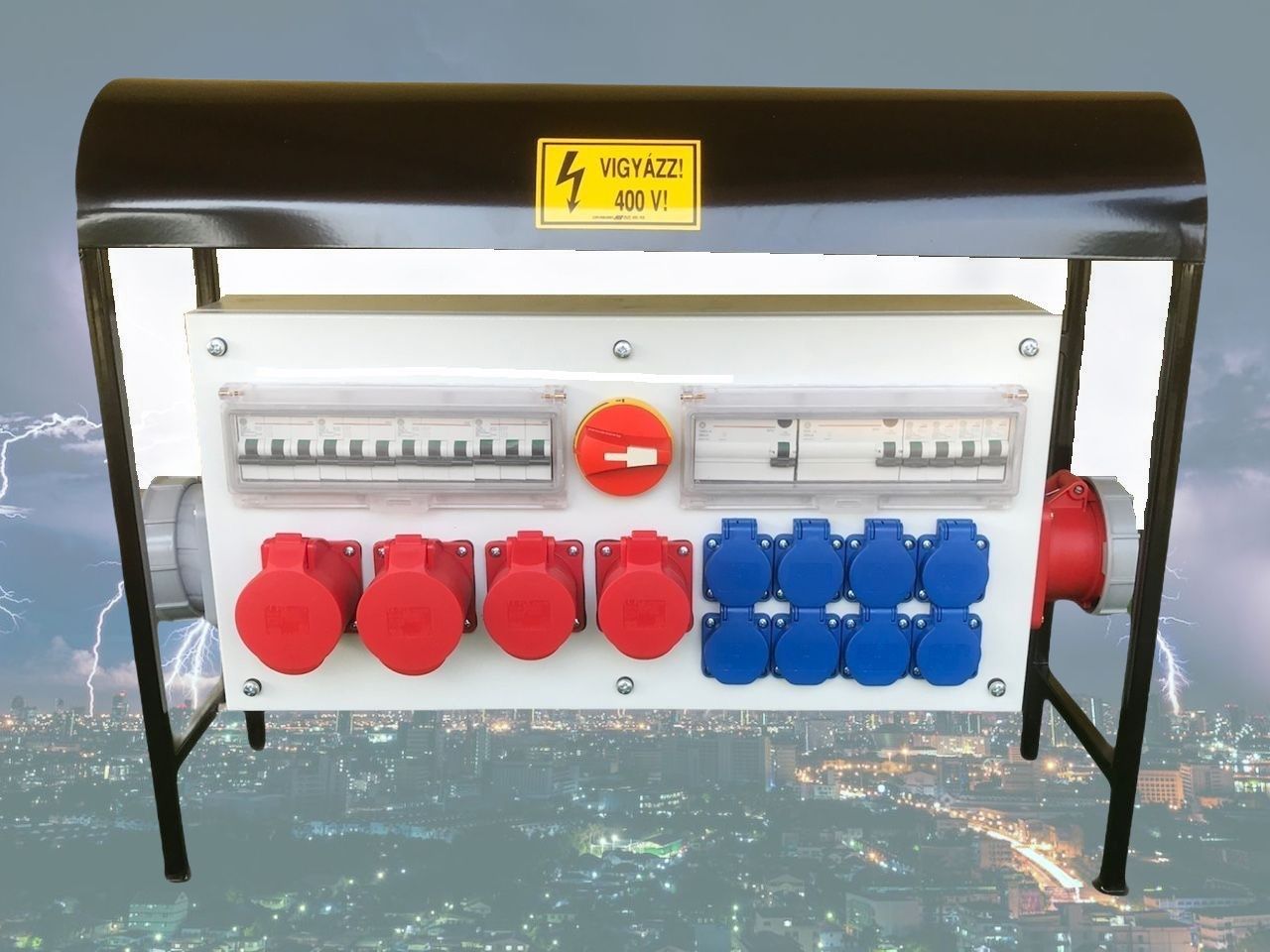

RSZ 2560 80K
- Name: RSZ 2560 80K
- Stand: grounded, black powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial, strungable
- Size of the cabinet: 600 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, music instruments
- Capacity: in case of permanent use of ohm consumer max. 160 Amper or 36,5kW
- Main switch: yes
- Loading: max 160A
- Electric schock protection: 1 pc. 4 pole, 100A-30mA Fi relay, 1 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 4 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 8 pcs 3 pole 16A, 1 pc 5 pole 63A father

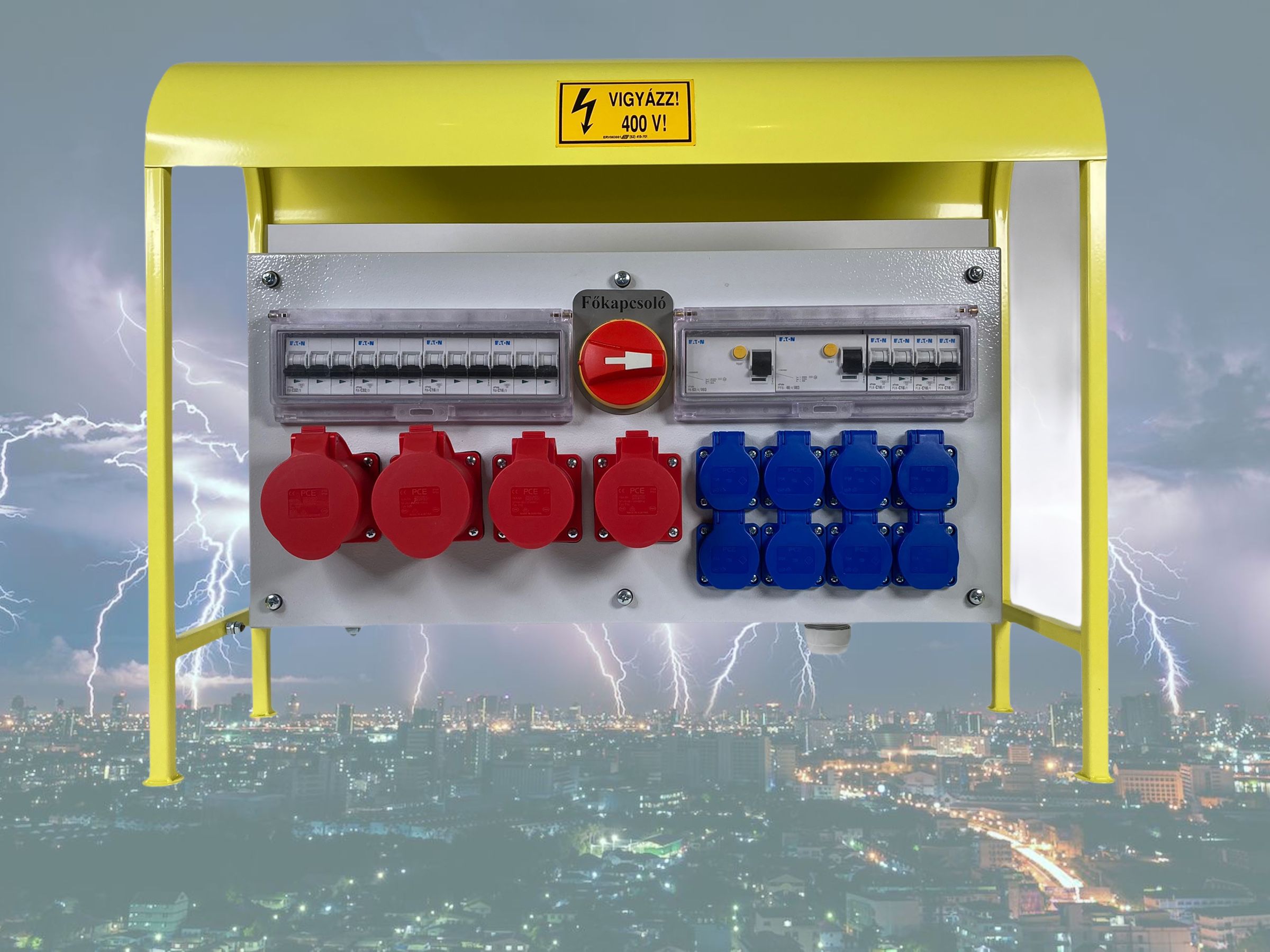

IFSZ 2570 80K
- Name: IFSZ 2570 80K
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 600 mm x 300 mm x 120 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 100 Amper or 23,5kW
- Main switch: yes
- Loading: max 100A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay, 1 pc. 4 pole, 40A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 4 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 8 pcs 3 pole 16A

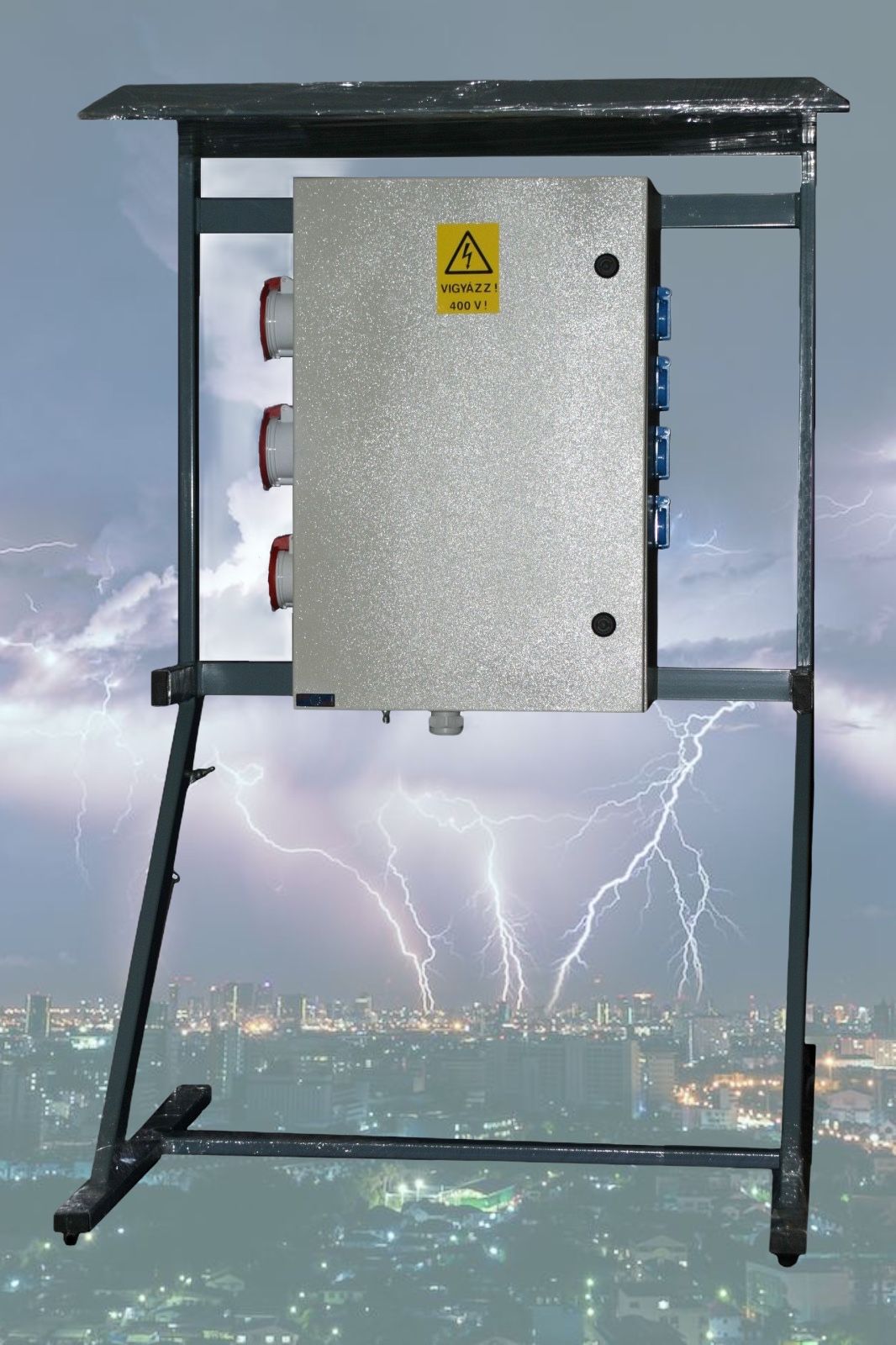

IFSZ 6040 250K
- Name: IFSZ 6040 250K
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 600 mm x 400 mm x 250 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 100 Amper or 23,5kW
- Main switch: yes
- Loading: max 100A
- Electric schock protection: 1 pc. 4 pole, 63A-30mA Fi relay, 1 pc. 4 pole, 40A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 5 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 5 pcs 3 pole 16A

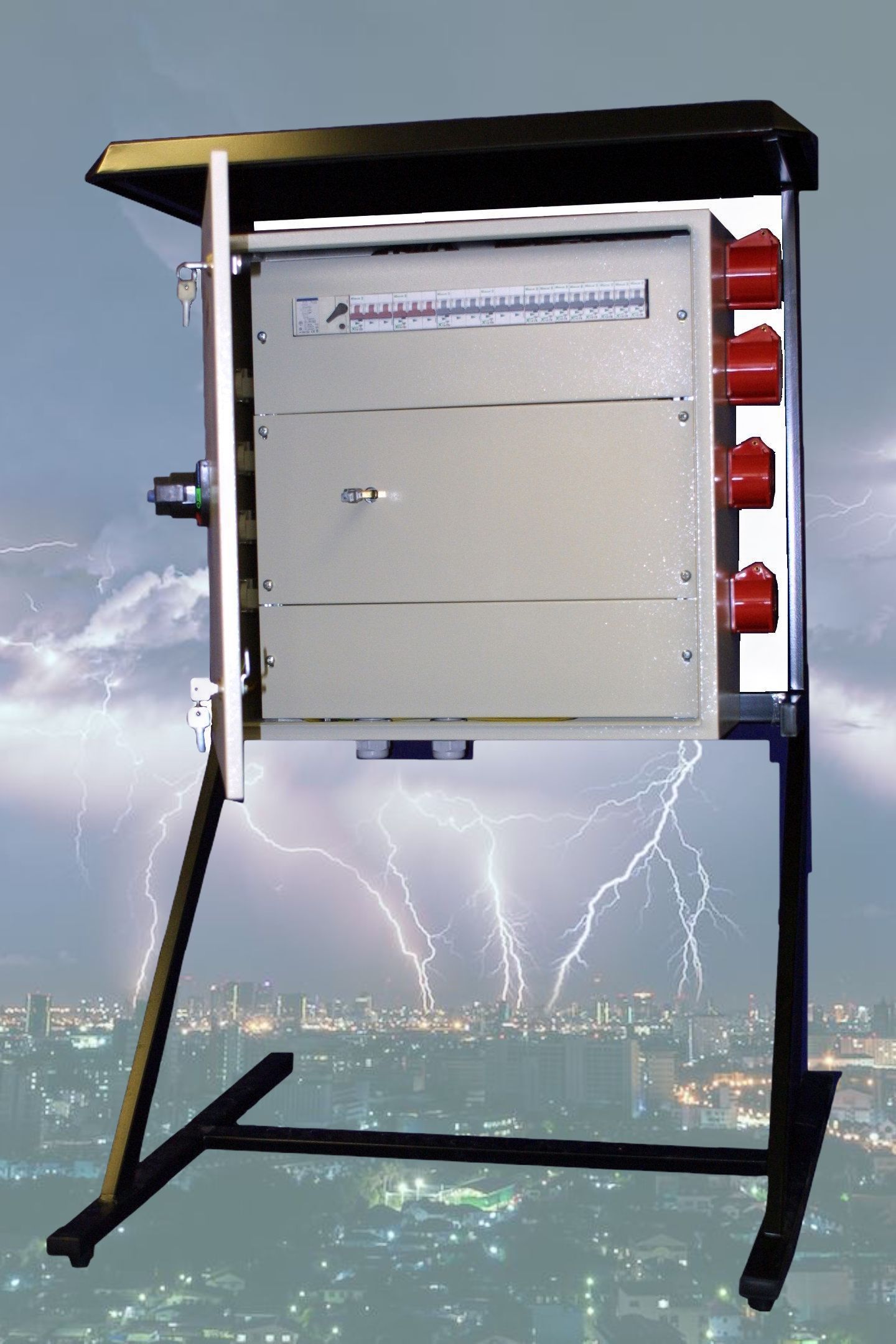

IFSZ 6060 250K
- Name: IFSZ 6060 250K
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 600 mm x 600 mm x 250 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 125 Amper or 28kW
- Main switch: yes
- Loading: max 125A
- Electric schock protection: 1 pc. 4 pole, 100A-30mA Fi relay, 1 pc. 4 pole, 40A-30mA Fi relay
- Protection for overload (circuit breakers): 2 pcs. 3 pole 32A, 2 pcs. 3 pole 16A , 8 pcs. 1 pole 16A
- Sockets, connectors: 2 pcs 5 pole 32A, 2 pcs 5 pole 16A, 8 pcs 3 pole 16A

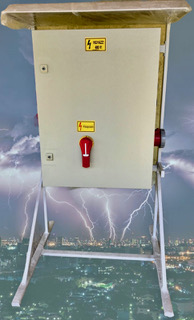

IFSZ 8060 250K
- Name: IFSZ 8060 250K
- Stand: grounded, powder coated , bended steelchassis
- Cabinet type: steel, IP44, universal using, also industrial
- Size of the cabinet: 800 mm x 600 mm x 250 mm
- Use: mainly supplying electrical devices, machinery
- Capacity: in case of permanent use of ohm consumer max. 250 Amper or 57,5kW
- Main switch: yes
- Loading: max 250A
- Electric schock protection: 2 pc. 4 pole, 100A-30mA Fi relay, 2 pc. 4 pole, 63A-30mA Fi relay
- Protection for overload (circuit breakers): 1 pc. 3 pole 63A, 4 pcs. 3 pole 32A, 4 pcs. 3 pole 16A , 8 pcs. 1 pole 16A
- Sockets, connectors: 4 pcs 5 pole 32A, 4 pcs 5 pole 16A, 8 pcs 3 pole 16A, 1 pc 5 pole 63A
Our event cabinets are available in the widest versions for our Customers.
We use only quality raw materials, cables, fittings, fasteners, fuses, circuit breakers, connections in the production and assembly of our products.
Our spare parts suppliers are all reputable European companies with a long professional history, which is a guarantee for us and our customers.
For easier and faster installation, we have made and are making many small changes to this day, which are important aspects of cabinet assembly and functionality.
Our goal is to be able to deliver the same excellent quality at all times, even in larger quantities, as everyone has been accustomed to so far.
Based on 30 years of experience in Hungary and Germany, we strive to meet all the needs that may arise during installation, taking into account both performance and durability and manageability.
Our tooling, experience and the openness and precision of our subcontractors help us to meet the delivery deadlines accurately, even for larger order quantities, and to fulfill orders with short deadlines and flexibility in case of special needs.
We have developed several versions for some of our more sought-after parade cabinets, which can be adapted to perform any special tasks by using varying inputs and outputs or even the length and design of the power cable, for use where the amount of consumers and current consumption can be known in advance.
We are happy to give advice!
Consult us if you feel that you may have difficulty completing a particular project or performing certain tasks due to a lack of proper information!
If we know the purpose for which you want to buy a particular cabinet or our existing models do not meet your expectations, together we will find a solution that will provide a suitable and complete security technical solution at your request.
Our products can be made “smart” and smarter to serve your interests.
What extra your event cabinet will receive is up to you!
We will solve it - by agreeing on the implications together - based on the need that comes to us.
If you haven't bought from us yet, give us a try!
Get to know our products and their technical properties!
Trust our expertise, because we will do our best to make you satisfied!
We are at your disposal by e-mail and telephone, if you have any questions or requests, give us a call, contact us!
Partners
As a professional and innovative manufacturer, we are always at your disposal with the right solutions and we adapt to your needs to the maximum, even with our individually manufactured, special products.
In the case of a construction or event (concert, performance, wedding, company party, conference, relocation, etc.), you will need electricity.
For this energy demand, electrical distribution cabinets that match the power demand of the event and are the most ideal solutions that we can always provide from our product range, even to meet Your individual wishes.
Whether you are looking for performance, size, design or color you want, you will use the right device as a solution from us.
Our company, which has been operating with unbroken enthusiasm and activity for 30 years, has received the “excellent company” qualification issued by BCP MAGYARORSZÁG Kft., which we want to achieve in the future as well!
This recognition characterized the operation of the company, its business concept, and its high-quality products, which showcase innovations in the field of manufacturing technology.
Our references include the following companies, organizations, corporations:
Mile
National Ambulance Service
Our cooperating partners, wholesalers:
News
30 years in the electrical industry… a lot of time, which includes a lot of experience in the field of production and construction, installation, of which the next product can only be better, more expedient.
It never matters what materials we use during production and assembly, because the selection of the right quality parts is reflected in the durability and functionality when using the product and relieves annoying minutes and hours.
Quality not only protects against possible and unexpected forced rest, but also protects against accidents, unwanted injuries and property damage.
It is worth investing in quality and even better not to be the cheapest…
Without recognition, experience and using the grey part of brain, there is no innovation.
Without innovation, renewal, innovation, there’s no product development and then there’s no development that could bring the products closer to the Customer, ie to you, because adapting to your personal needs is important in everyday life. Perhaps the most important thing is.
Your need becomes our task to be fulfilled. As completely as possible.
During the production and assembly of the procession cabinets, we strive for mechanization, more perfect connections, the simplest possible handling and transportability while maintaining functionality.
If a manufacturer produces reliable products at fair prices and in the long run, it means that customers in this narrow business and user segment can always expect to get what they expect for their money.
The technical content and the quality that will make the product user-friendly for a long time and for the right purposes and make the Buyer / User a regular customer.
We believe in that. That’s why we develop and change manufacturing methods, buy newer and newer manufacturing tools, we always add a little plus over the previous series.
Many times we have become the reliable suppliers of the largest domestic companies and organizations, observing the impossible dates.
We are proud of what we have achieved together and we are proud of the recognition that our company, Buváll-Profi Kft. received recently, according to which we are an excellent company in terms of management, reliability and the quality of the manufactured products.
Contact
Buváll-Profi Construction, Trade and Service Limited Liability Company
Contact details of our company:
We can arrange the delivery of the products with our own vans - in case of a larger order item - from the warehouse or the place of production only by prior agreement.
Ask for information about the possibilities of other versions and modifications at our contact details! Get to know our products and their technical properties!
You can also purchase our products from our key reseller partners. Your opinion is important to us! Please contact us!
If you haven't bought from us yet, give us a try!
Trust our expertise, because we will do our best to make you satisfied!
Welcome Among Our Customers!
